Specifications
| Number of Charging Interfaces | One Pile with One Charge |
|---|
| Installation | Wall Mounted |
|---|
| Model NO. | VEC-11KW-OS Untethered version |
|---|
| Charge Method | Normal Charge |
|---|
| Current | 32A Three Phase |
|---|
| Power | 22kw |
|---|
| Customization | Yes |
|---|
| Technical Exchange | Face to Face |
|---|
| Service | OEM & ODM |
|---|
| Project | Pre-Evaluation with Client |
|---|
| Delivery | Fast and Efficiency |
|---|
| Type | Fast EV Charging Station |
|---|
| Certification | CCC, CE, TUV, RoHS |
|---|
| Warranty | 24 Months |
|---|
| Transport Package | by Sea, by Air |
|---|
| Specification | 390*255*135mm |
|---|
| Trademark | OEM |
|---|
| Origin | Zhejiang |
|---|
| HS Code | 8504409999 |
|---|
| Production Capacity | 3000sets/Month |
|---|
| Package Size | 49.00cm * 38.00cm * 22.00cm |
|---|
| Package Gross Weight | 14.150kg |
|---|
| Mode | A Certificate: CE |
|---|
| Size | 390*255*135mm |
|---|
| Model | OCPP EV Charger - 7.2kW/22KW Tethered Version EV Charger |
|---|
| Charge to Run | 55kM/Hour |
|---|
| Protocal | OCPP 1.6J |
|---|
| Data commication | Ethernet,WIFI or 4G |
|---|
| Access control | RFID, Mobile APP(optional) |
|---|
| Energy Meter | MID CE ,SGS approved |
|---|
| Input voltage | 150-250V |
|---|
| Frequency | 50/60HZ |
|---|
| Charging power | 7.2kW/22KW |
|---|
| Charging interface | Socket |
|---|
| Protection level | IP54 |
|---|
| Approvals | CE |
|---|
| Category | EV Charging Equipment |
|---|
| Manufacturer | Suzhou AEGEN New Energy Technology Co., Ltd. |
|---|
Detailed parameters
| EV Smart OCPP | | |
|---|
| Model/PN | 1-phase | 3-phase |
|---|
| Application | Commercial | |
|---|
| Voltage(Vac) | 1-phase 230V±20% | 3-phase 400V±20% |
|---|
| Frequency(Hz) | 50/60Hz | |
|---|
| Power Output | 7KW,32A | 22KW, 32A |
|---|
| Current(rms) | 16A,32A, | |
|---|
| Charging Connector | SAE J1772 Type 1,Type-2 connector or Type-2 socket | |
|---|
| Charging Cable Length | 16ft.(5m) | |
|---|
| RCD | Type-B RCD | |
|---|
| Energy Meter | CE Certified meter | |
|---|
| Buttons | Emergency stop,phisical adjustment | |
|---|
| Indications | Standby(Green),Charging(Flashing Green),Fault(Red),Waring(Flash Red) | |
|---|
| Wi-Fi | Optional | |
|---|
| 4G | Optional | |
|---|
| RFID | ISO 1443 A/B·ISO 15693 | |
|---|
| Display | 7"LCD | |
|---|
| Status Indicators | Standby (slow flashing green), charging (fast flashing green), fault (slow flashing red), warning (fast flashing red) | |
|---|
| Output Protection | Power output is terminated upon detection of charging connector plug-out | |
|---|
| Electrical Protection | Over current, short circuit, over voltage, under voltage, ground fault, lightning surge, over temperature protection | |
|---|
| Data Pretocol | OCPP1.6J | |
|---|
| Operation Temp. | ‐30ºC~50ºC/‐22ºF~122ºF | |
|---|
| Storage Temp. | ‐40ºC~70ºC/‐40ºF~158ºF | |
|---|
| Working Humidity | 5%~95% without condensation | |
|---|
| Mounting Type | Wall(default)/Pole | |
|---|
| IP Performance | IP54 | |
|---|
| Dimension(H×W×D,inch) | 395*260*125mm | |
|---|
| Web Portal Management | Yes | |
|---|
| Mobile App | ios/Android | |
|---|
| Weight(kg) | 6.6kg socket version | 10.7kg cable version |
|---|
Description

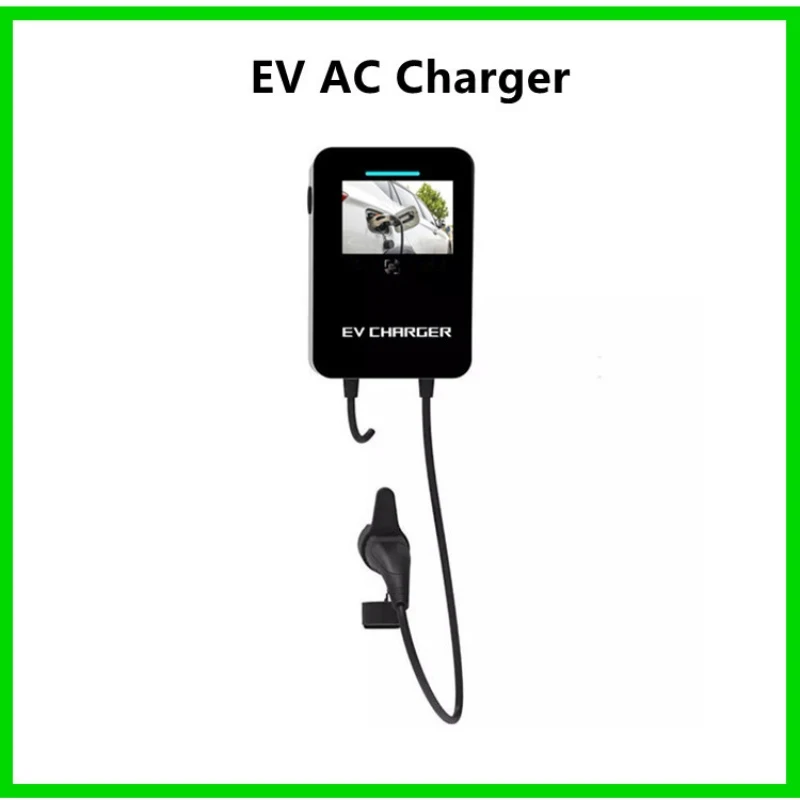

11kw GB/T BMW Charger Wall-Mounted AC EV Charger Set Screen with Ocpp EV Charger Cheap is listed in ev charging equipment (Electrical & Electronics).
Key details
- Type: Fast EV Charging Station
- Size: 390*255*135mm
- Certification: CCC, CE, TUV, RoHS
- Warranty: 24 Months
- Number of Charging Interfaces: One Pile with One Charge
- Installation: Wall Mounted
- Charge Method: Normal Charge
- Current: 32A Three Phase
The supplier lists this product for BMW applications. Listed type: Fast EV Charging Station. Model: VEC-11KW-OS Untethered version. Fitment and specifications reflect the supplier listing and are not independent BMW approval.
Ordering through BMW-M
Minimum order is 1 piece at US$290.00 – 373.00 per piece. Send one inquiry and BMW-M confirms fitment for your chassis code, price, lead time and shipping with the manufacturer, inspects the goods and ships them to you.
Fitment
Listed for the following BMW model series and chassis codes. Send your chassis code, year or VIN with your inquiry and we confirm the exact fit.
